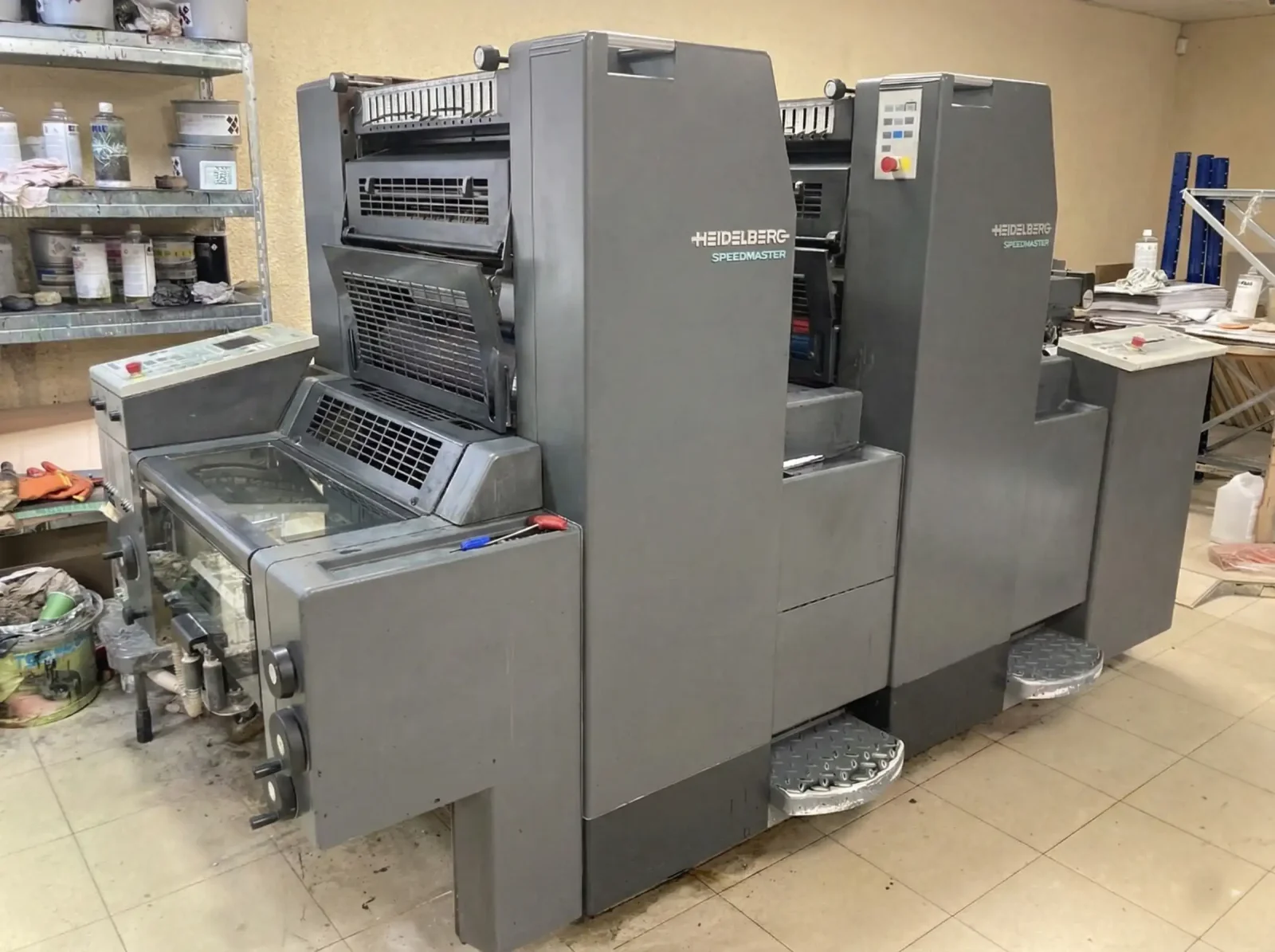

HEIDELBERG SM52-2P year 2000

HEIDELBERG SM52-2P year 2000
Machine no. XXXXX
Sheet-fed offset press, 2-color, perfector
51 million impressions
CP tronic
Autoplate
Automatic ink roller washer, automatic blanket washer, automatic impression cylinder washer
Low-pile delivery
Powder sprayer

All rollers of the machine are brand new – both dampening and inking systems!
Changed at the end of 2024, have made no more than 50,000 impressions.

Technical details:
Max speed: 15,000 sheets/hour
Max paper size: 370 x 520 mm
Min paper size: 105 x 145 mm
Max thickness: 0.03–0.4 mm
Printing area: 360 x 520 mm
Gebx Icowt Alcoquheca
Plate size: 459 x 525 mm, thickness 0.15 mm
Blanket size: 535 x 460 mm, thickness 1.90 mm
Dimensions:
Length: 2.86 m
Depth: 1.85 m
Height: 1.62 m
Power requirement: approx. 14 kW
Weight: approx. 4,800 kg
Included accessories:
- Fully equipped
- 7 feeder boards
- Feeder pile with preloading device
- Stream feeder, suction-tape feeder table
- Electronic double sheet detection
- Electromechanical double sheet detection
- Electronic side lay control, photoelectric & acoustic
- Alcolor continuous dampening system with Technotrans alcohol dosing, cooling and recirculation unit
- Preset (automatic paper size and thickness setting)
- CP TRONIC: Machine control and diagnostics via plasma monitor/console with self-diagnosis; remote dampening; axial, circumferential and diagonal register control
- Programmable automatic blanket cylinder wash-up via CP Tronic – Tandem Wash-up Concept
- Programmable automatic impression cylinder wash-up via CP Tronic – Tandem Wash-up Concept
- Programmable automatic roller wash-up via CP Tronic
- Autoplate (semi-automatic plate changer) with Bacher Control 2000 register system
- Chromed impression cylinders
- Chromed plate cylinders
- Chromed blanket cylinders
- Laser slit ink ducts
- Central lubrication system with automatic central service interval control via CP-Tronic
- Pneumatic compressors
- Powder sprayer device
- Low pile
- Automatic sheet de-curler
- Oil drip pan, tools, documentations
- Complete with all standard parts and accessories

Condition: Machine in excellent condition, no damage to cylinders or gears
Availability: Immediate
Inspection: Machine is in production, can be tested.
