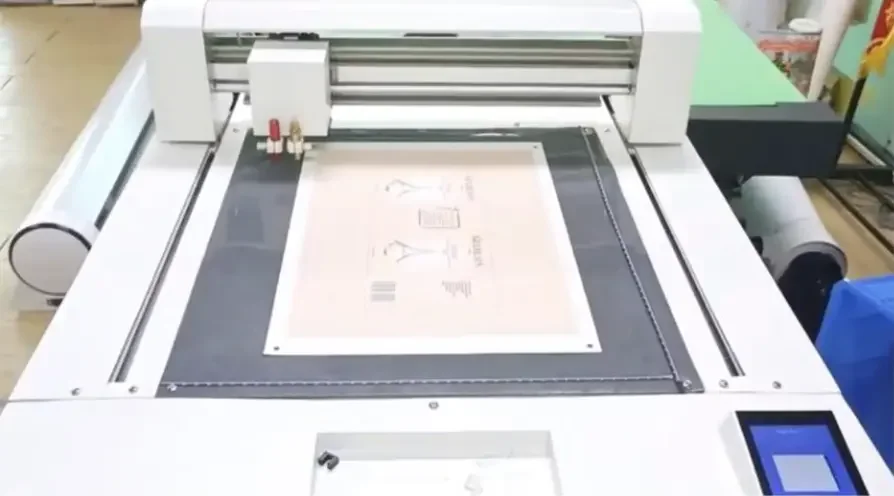

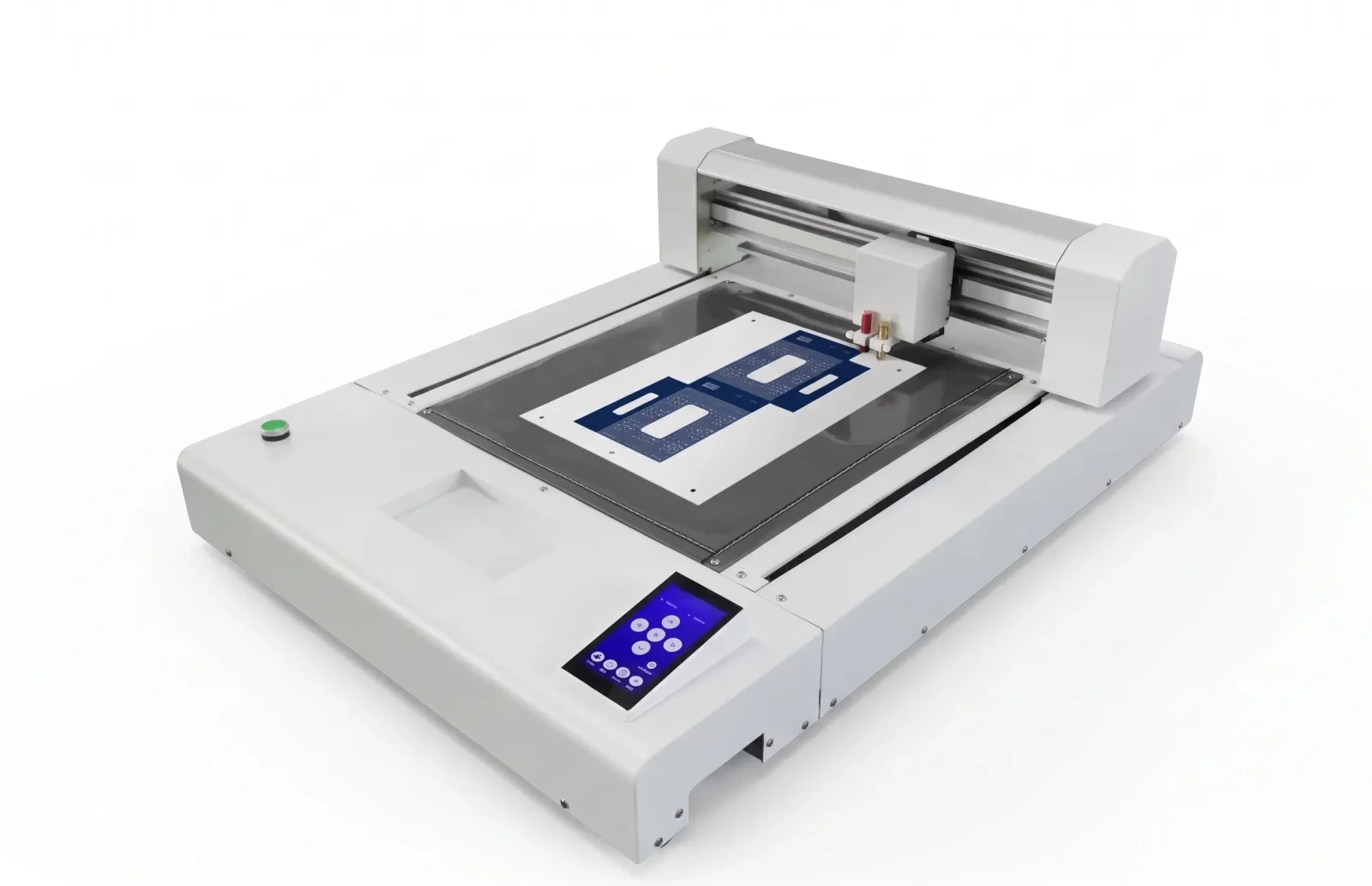

PT-5035 DIGITAL PLOTTER CUTTER MACHINE

Widely used is widely used for packaging box sampling, hollow cardboard, adhesive cutting, paper cutting, PVC board sampling.

Features

• Cutting size: 350x500mm (A3+)
• Large Screen with touch control
• Automatic adsorption system
• Double blade for creasing and cutting
• Cartoon proofing, full cutting and crease treatment
• Camera scan contour cut

Model No. PT-5035 Cutting speed 1mm/s - 800mm /s Cutting thickness Within 1.2mm Cutting pressure 1000g Cutting material Can cut PET, PVC, cardboard, sticker, film, fiber Blade Composite material, fabric, PU, plastic board, etc Dual blade Scan mark way Camera scan position system Material fixing way 700W Vacuum adsorption Flatbed Driver Stepper motor Cutting precision ±0.15mm Operation Method Flatbed Repeatable Precision ≤0.05mm Cutting circle diameter 1mm Interface USB/U-Disc port/Ethernet port Compatible software Signmaster, Al, Autocad, Coreldraw etc Instructor of the plotter HPGL compatible format CNC panel Multi-language LCD touch panel Transmission material Imported belt Operating voltage and power DC220V ±10%, 50HZ Cutting area 500mm*350mm Machine size 954*292*694mm
