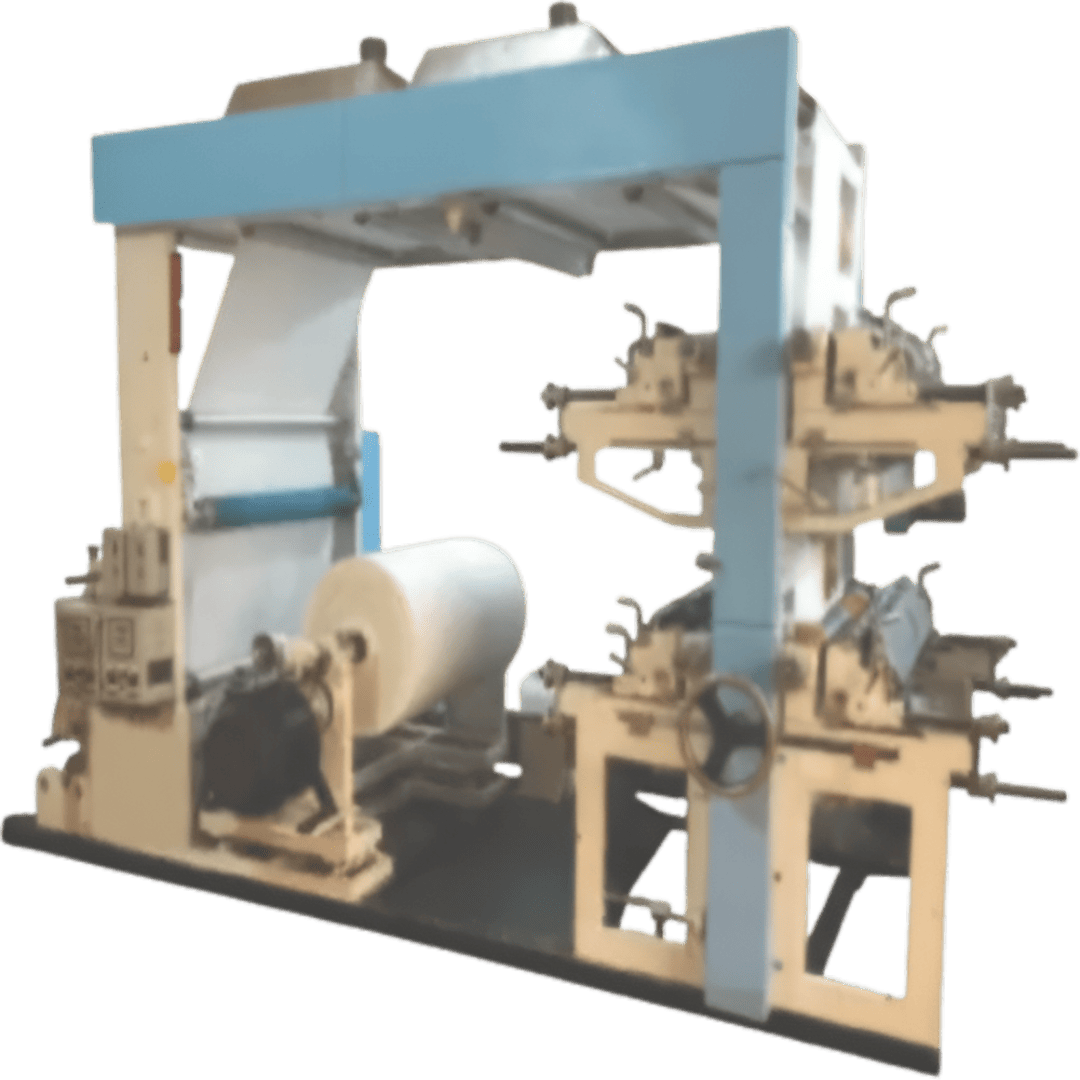

FLEXO ROLL TO ROLL PRINTING MACHINES

APPLICATION :

HDPE WOVEN SACKS

P.P.WOVEN SACKS

LAMINATED JUTE BAGS

CRAFT PAPER BAGS

LLDPE BAGS

MULTI WALL PAPER SACKS

CANVAS BAGS

JUMBO BAGS

.......

MATERIAL THAT CAN BE PRINTED : HM, LD, NONWOVEN, LLDPE, HDPE

PAPER POLYESTER FILM, FOIL ETC

AVAILABLE MODELS:- 2,4,6 AND 8 COLOURS

WEB WIDTH :- 20” TO 80” (500MM TO 2050MM)

REVERSE PRINTING ARRANGEMENT

TOP DRYING HOOD SYSTEM AND INTERMEDIATE DRYING

BETWEEN UNITS HEAVY DUTY CAST IRON BODY ( VIBRATION FREE)

LOW FRICTION DYNAMICALLY BALANCE GUIDE ROLLS,

WED ROLLER ALUMINIUM ROLLERS & SHEET ROLLERS

.....

NO. OF COLOURS : 1 TO 8

WEB WIDTH : 500MM TO 2050MM (20”TO 80”)

UNWIND/REWIND REEL DIA : 1000MM (40”)

UNWIND/REWIND CORE ID : 76MM AND 152MM

RANGE OF CYLINDEER CIRCUMFERENCE : 250MM-1270MM ( 10” TO 50”)

PRINTING SPEED : 80 MTR PER MIN

 ( VARIABLE AS PER NO OF COLOURS OF MACHINE)

POWER REQUIREMENT : 4 COLOUR MACHINE :- 16 KW.

 : 6 COLOUR MACHINE:- 20KW.

 : 8 COLOUR MACHINE:-24 KW.

FLOOR SPACE LENGTH : VARIABLE AS PER THE MACHINE
